Add Servers to the Network with Setup Keys

For DevOps teams managing complex infrastructures, adding new servers or containers to the network is a persistent challenge. Traditionally, manual configuration and individual setup processes have been the norm, often leading to time-consuming, error-prone, and potentially insecure deployments.

The problem with conventional server and container network integration methods includes:

  • Time-Intensive Setup: Manually configuring each new server or container for network access can be tedious and time-consuming, especially in rapidly scaling environments.
  • Scalability Limitations: As infrastructure grows, the complexity of managing network access for numerous servers and containers increases exponentially.
  • Security Risks: Manual processes can lead to human errors, potentially exposing servers to unauthorized access or creating security loopholes in the network.

This guide introduces QuFabric's Setup Keys as an elegant solution for seamlessly and securely adding servers and containers to your network by:

  • Streamlining Deployment: Providing a simple, automated way to connect new servers and containers to your QuFabric network with minimal manual intervention.
  • Facilitating Scalability: Enabling rapid expansion of your network infrastructure without compromising on security or operational efficiency.
  • Enhancing Security: Implementing a secure, automated process that reduces the risk of human error and unauthorized access, strengthening your overall security posture.

This approach significantly reduces deployment time, ensures consistent and secure network configurations, and supports seamless scalability.

Let's dive into the step-by-step process of using QuFabric's Setup Keys to securely add a server with a Docker container to your network.

Prerequisites

For this tutorial, you'll need the following prerequisites:

With these prerequisites in place, you'll be prepared to set up a secure network connection using QuFabric's Setup Keys by:

  1. Creating a Setup Key in your QuFabric account
  2. Provisioning a VM and installing QuFabric using the Setup Key
  3. Deploying a Docker container on the VM
  4. Connecting the Docker container to the QuFabric network using the Setup Key

This process will demonstrate how Setup Keys simplify and secure the addition of new servers and containers to your QuFabric network.

Creating a Setup Key in Your QuFabric Account

To seamlessly integrate virtual machines or Docker containers into your QuFabric network, you'll start by creating a setup key. While QuFabric's documentation offers comprehensive guidance on this process, let's quickly review the essential steps:

  • Access your QuFabric dashboard
  • Navigate to the Setup Keys section
  • Click the Create Setup Key button on the right
  • Name your key (e.g., "VM-Docker-Demo")
  • Set an expiration date (recommended for enhanced security)
  • Configure auto-assigned groups if needed
  • Click Create Setup Key to generate the setup key
  • Copy the generated key and store it securely as you'll need it for the next steps

Here's an example:

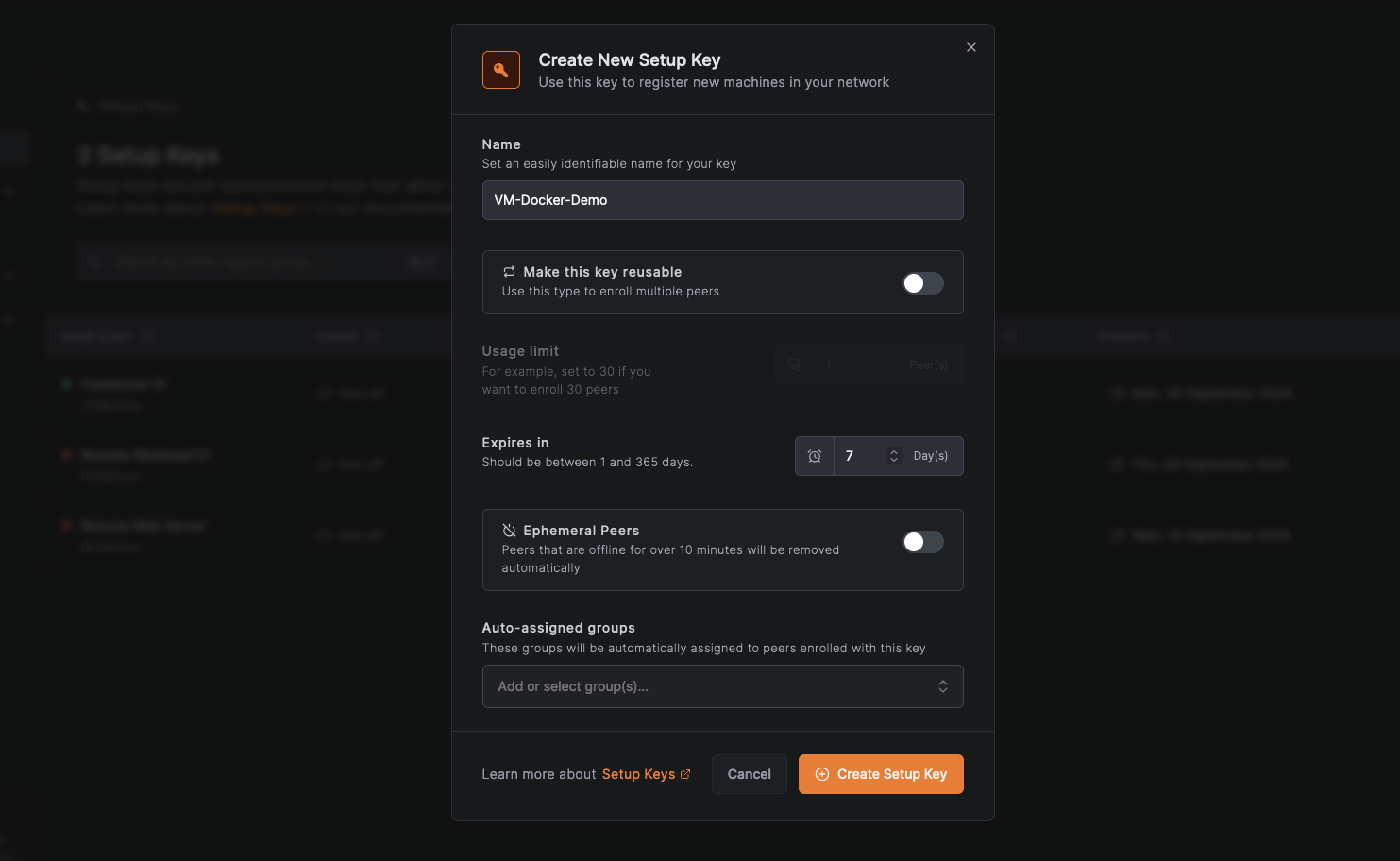

QuFabric Generating Setup Key

This setup key will serve as your secure passport for adding both your VM and Docker container to the QuFabric network, ensuring a consistent integration process.

The Setup Key expiration date applies only to the key's validity period for adding new peers to the network. Once a peer is connected using the setup key, the expiration date does not affect the peer's network access.

Provisioning a VM and Installing QuFabric Using the Setup Key

After creating your setup key, the next step is to provision your VM and install QuFabric:

curl -fsSL https://pkgs.qufabric.io/install.sh | sh

Once installation completes, connect to the QuFabric network using your setup key:

qufabric up --setup-key <YOUR_SETUP_KEY>

Verify QuFabric's status:

qufabric status

You should see output confirming the connection status, assigned IP, and peer information.

OS: linux/amd64
Daemon version: 0.29.4
CLI version: 0.29.4
Management: Connected
Signal: Connected
Relays: 2/2 Available
Nameservers: 0/0 Available
FQDN: docker-vm.qufabric.cloud
QuFabric IP: 100.85.148.249/16
Interface type: Kernel
Quantum resistance: false
Routes: -
Peers count: 0/0 Connected

You can also check the QuFabric service status by running:

sudo systemctl status qufabric

This should show the service as active and running.

● qufabric.service - A WireGuard-based mesh network that connects your devices into a single private network.
     Loaded: loaded (/etc/systemd/system/qufabric.service; enabled; vendor preset: enabled)
     Active: active (running) since Tue 2024-09-24 19:22:56 UTC; 52s ago
   Main PID: 3819 (qufabric)
      Tasks: 7 (limit: 1011)
     Memory: 26.3M
        CPU: 113ms
     CGroup: /system.slice/qufabric.service
             └─3819 /usr/bin/qufabric service run --config /etc/qufabric/config.json --log-level info --daemon-ad

Next, ensure QuFabric starts automatically on boot:

sudo systemctl enable qufabric

Finally, log into your QuFabric dashboard and navigate to the Peers section to confirm your VM is listed and connected.

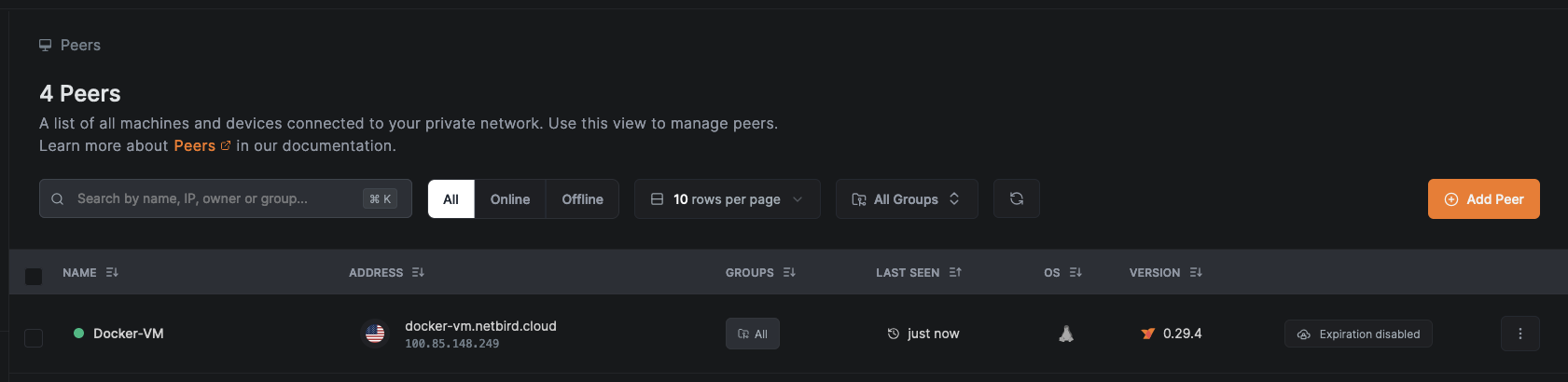

QuFabric Peers View

By using the setup key, you've securely added your VM to the QuFabric network with minimal manual configuration, demonstrating the efficiency and security benefits of this approach.

Deploying a Docker Container on the VM

To test QuFabric's secure point-to-point connection, we'll deploy a simple Docker container with a Nginx-based web server serving a welcome page.

Create a directory for the Docker project:

mkdir qufabric-demo && cd qufabric-demo

Create a HTML file with the welcome message:

echo "<html><body><h1>Welcome to QuFabric Demo</h1><p>If you can see this, you've successfully connected to the container via QuFabric.</p></body></html>" > index.html

Create a Dockerfile:

cat << EOF > Dockerfile
FROM nginx:alpine
COPY index.html /usr/share/nginx/html/index.html
EOF

Next, build and run the Docker container using the commands:

docker build -t qufabric-demo .
docker run -d --name qufabric-demo-container -p 8080:80 qufabric-demo

Notice that the container is accessible on port 8080 of the VM. You'll use this port to test the connection.

Connecting the Docker Container to the QuFabric Network Using the Setup Key

Now that your VM is connected to the QuFabric secure network, you can verify the connection using either curl or your web browser. Simply use the QuFabric-assigned IP address or domain for the VM to access the deployed web server.

To locate the QuFabric-assigned IP or domain, go to the Peers page in your QuFabric dashboard and hover your cursor over the VM's name.

QuFabric Peers IP Address or Domain

Verify connectivity to the VM from any QuFabric-connected device using:

curl http://<QUFABRIC_IP>:8080

The expected output should be similar to the following:

$ curl 100.85.148.249:8080
<html><body><h1>Welcome to QuFabric Demo</h1><p>If you can see this, you've successfully connected to the container via QuFabric.</p></body></html>

Alternatively, you can go to http://VM_QUFABRIC_DOMAIN:8080 using your browser:

QuFabric Welcome Page

Keep in mind that this tutorial used the default All group for simplicity. However, implementing QuFabric's Access Policy to restrict peer-to-peer connections to specific user groups is a best practice for gaining granular control over resource access, thus improving your network's overall security posture in various scenarios.

Optional: Automating SSH Access to Your VM

To further enhance your network security, you can enable SSH access to your VM via an embedded QuFabric SSH server. This feature allows you to securely access your VM with SSH without exposing it to the public internet and without the need for distributing and managing SSH keys. To enable QuFabric SSH access, run the following command on your VM:

qufabric up --allow-server-ssh

You can then use the QuFabric SSH client to connect to your VM:

sudo qufabric ssh <QUFABRIC_DOMAIN | QUFABRIC_IP>

Summing up, QuFabric's setup keys solve the challenge of securely connecting unattended resources, streamlining the integration of servers and containers without user intervention. For those looking to scale, the QuFabric API offers powerful automation capabilities, allowing programmatic management of peers, setup keys, and access policies. These features combine to create a robust, secure, and easily manageable network infrastructure that adapts to your organization's needs.
