Install QuFabric on TrueNAS

QuFabric can now be installed on TrueNAS via TrueNAS Apps (the built-in app catalog). If you need help setting up TrueNAS from scratch (install, storage pools, datasets, users, SMB sharing, and more), see our Knowledge Hub Guide: TrueNAS Made Easy.

The QuFabric app on TrueNAS runs in a Docker container. You cannot use the peer's QuFabric IP address or QuFabric domain (hostname) to connect directly to your TrueNAS instance traffic to those addresses reaches the container, not the TrueNAS host. See Access TrueNAS via QuFabric Networks below for the full steps.

Install QuFabric from Catalog

  1. In TrueNAS, go to Apps and search for QuFabric. If it doesn't appear, refresh the catalog (e.g., Discover Apps or the catalog refresh option in your TrueNAS version).

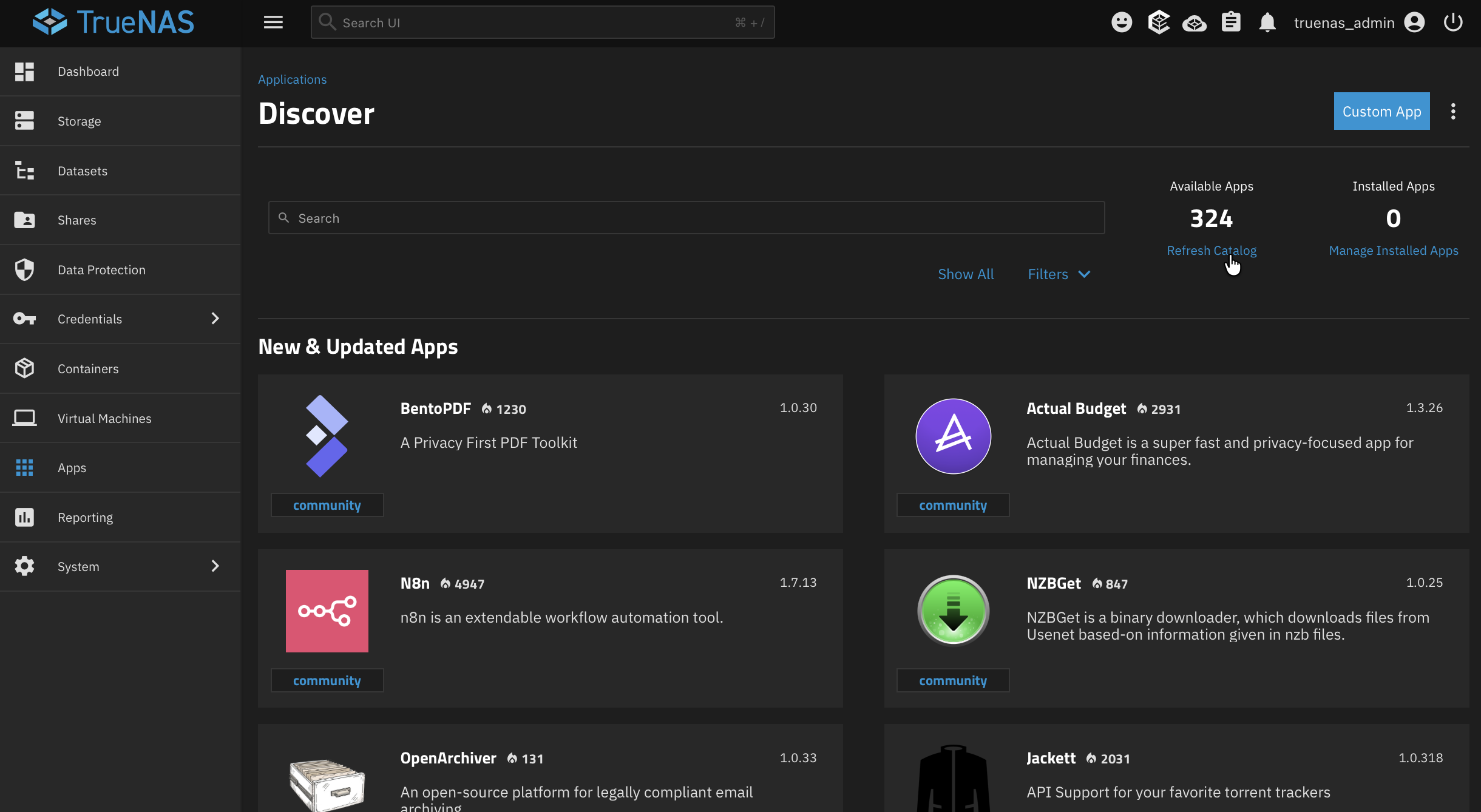

Refresh TrueNAS catalog and search for QuFabric
  1. Click Install and configure the app as described below. Most defaults are fine; the main fields you need to set are Hostname and Setup Key.

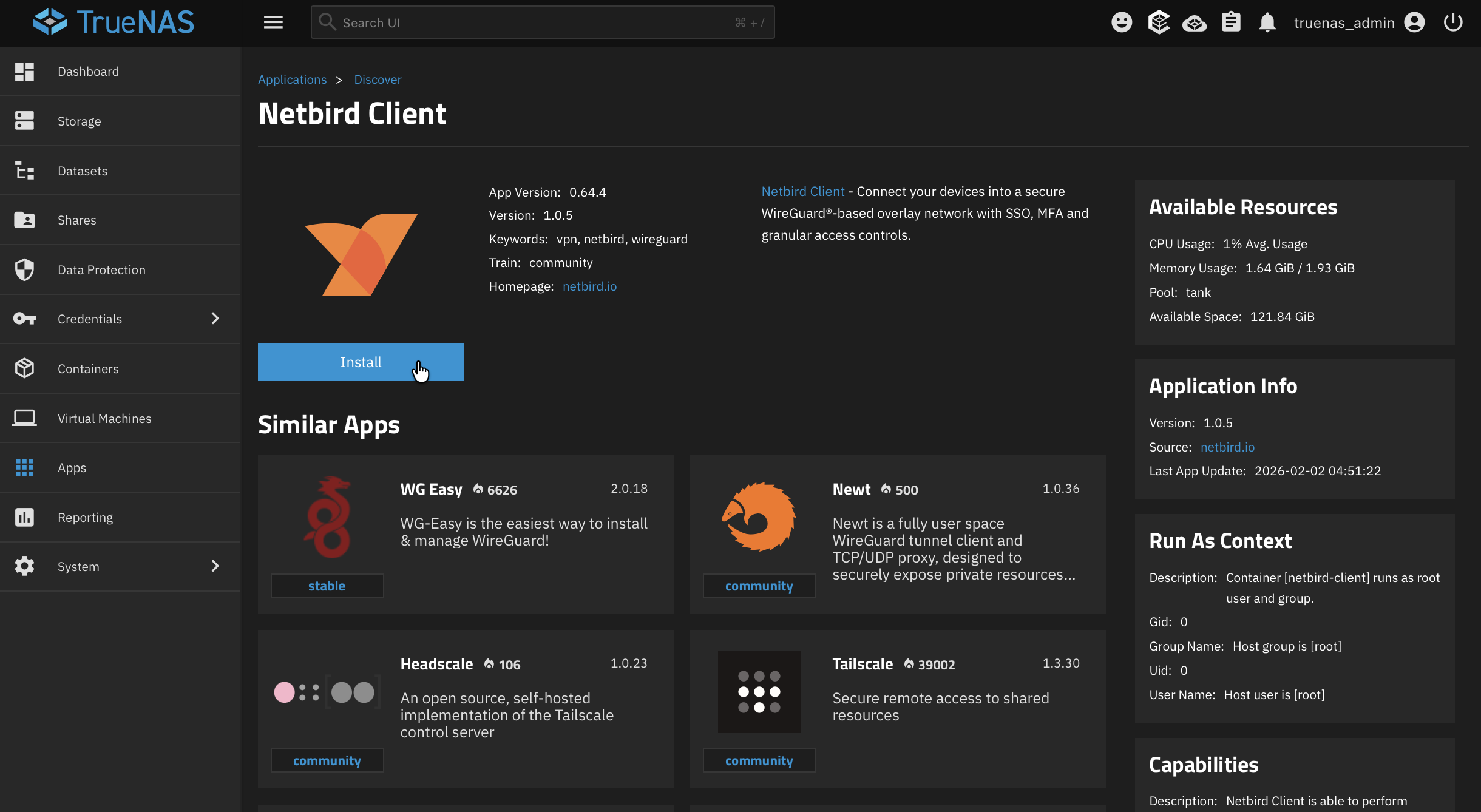

Install QuFabric app on TrueNAS
  1. After installation, confirm the app is Running in the Apps list.
  2. Open your QuFabric dashboard and go to Peers. You should see your TrueNAS peer listed. Rename it (e.g., "TrueNAS" or "NAS") if you like for easier identification.

App configuration

When you install the QuFabric app, TrueNAS shows an Edit QuFabric Client form. Use this as a guide:

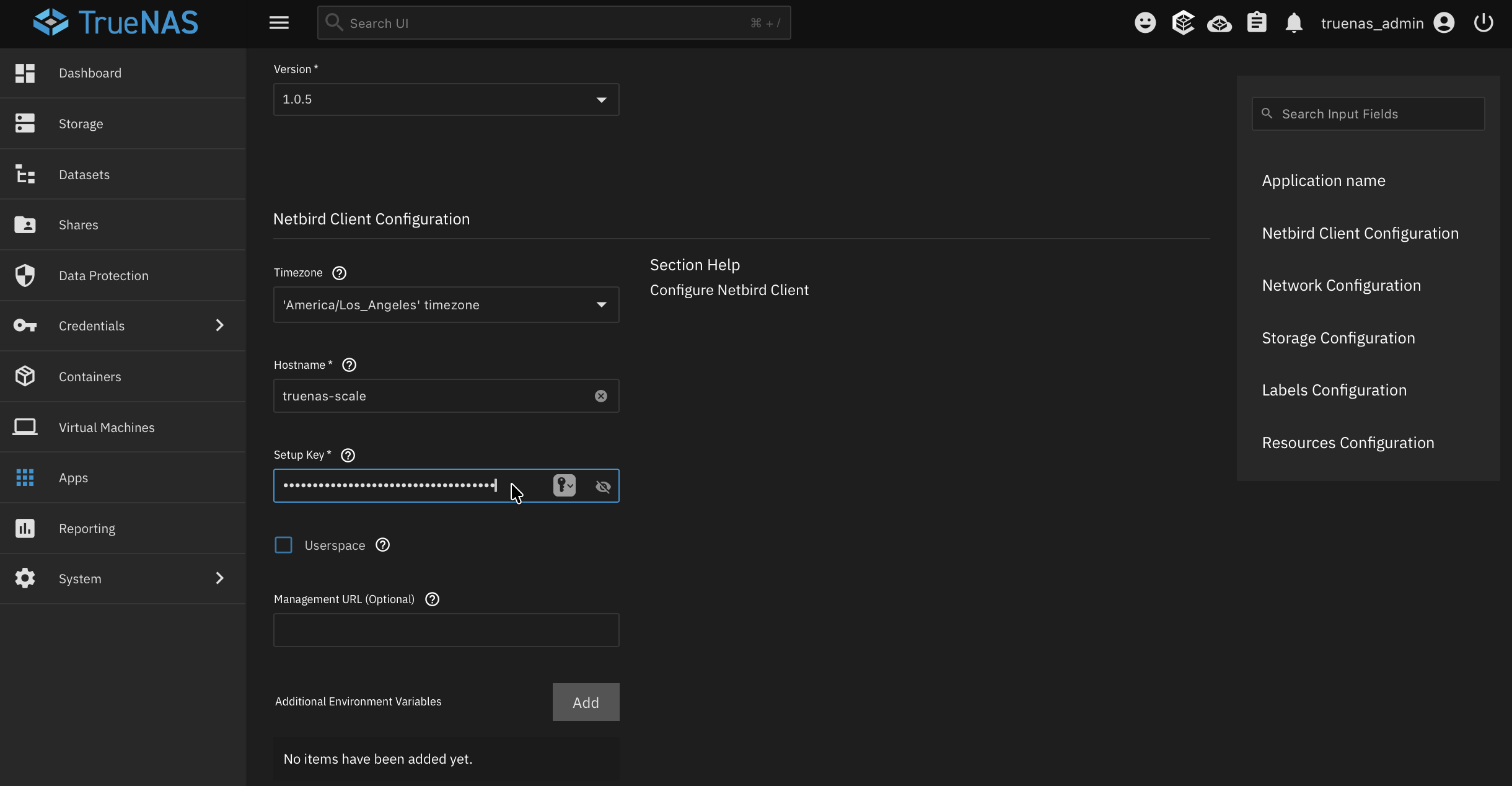

QuFabric client configuration form with Setup Key

QuFabric Client Configuration

  • Application name: Display name in TrueNAS (e.g., "QuFabric" or "QuFabric Client"). Default is fine.
  • Timezone: Leave default unless you need a specific timezone for logs.
  • Hostname: Name this peer will use in QuFabric (e.g., "truenas" or "nas"). Pick something you’ll recognize in the dashboard.
  • Setup Key (required): Paste the setup key you created in Generate your Setup Key. This registers the TrueNAS peer with your QuFabric network.
  • Userspace: Leave default (userspace networking). Only change if you have a specific need.
  • Management URL (optional): Leave empty for QuFabric Cloud (https://api.qufabric.io). Set this only if you use a self-hosted management server.
  • Additional Environment Variables: Leave empty unless you need extra environment variables.

Network Configuration

  • Host Network: Enable Host Network so the QuFabric container uses the TrueNAS host's network stack. Without it, the container only has its own network and cannot reach your LAN or act as a routing peer.

Storage Configuration

  • State Storage: Use the default (e.g., ixVolume) so QuFabric can persist its state. This keeps the peer identity and config across app restarts.

Resources Configuration

  • CPUs and Memory (MB): Defaults are usually sufficient. Increase if you have many peers or heavy routing.

You can leave Labels and Additional Storage empty unless you use them for access policies or custom storage.

Access TrueNAS via QuFabric Networks

Because QuFabric on TrueNAS runs inside a Docker container, you cannot connect directly to the TrueNAS host or its services by IP as you would to a normal peer. To reach TrueNAS or other devices on the same LAN, use QuFabric Networks:

  1. Create a QuFabric Network: In the dashboard, go to Networks → Add Network. Name it (e.g., "Home LAN" or "TrueNAS LAN").
  2. Add the TrueNAS peer as a routing peer: In that network, click Add Routing Peer and select the TrueNAS peer. This makes TrueNAS the gateway for traffic into your local subnet.
  3. Add a network resource: Click Add Resource. Either:
    • Add your entire LAN subnet (e.g., 192.168.1.0/24) so you can reach TrueNAS and any other device on that subnet, or
    • Add a single resource (e.g., 192.168.1.100/32) if you only need access to the TrueNAS host.

After you define an access control policy that allows the right peers or groups to reach this network, you can access TrueNAS and other resources on that subnet through the TrueNAS routing peer.

Video Walkthrough

Install and configure TrueNAS for home server storage, then securely access it from anywhere using QuFabric. Covers ZFS pools, SMB sharing, apps, and zero-trust remote access, see our Knowledge Hub Guide: TrueNAS Made Easy.
